Jiangsu Baowu new Material Co., LTD
1 Years
| Ask Lasest Price | |
| Brand Name : | TISCO, BAOSTEEL |
| Certification : | SGS,ISO,BV |
| Price : | to be negotiated |
| Supply Ability : | 5000 Ton/Month |
| Delivery Time : | Within 7-15 workdays after receiving deposit or L/C |
| Model Number : | plate/sheet |

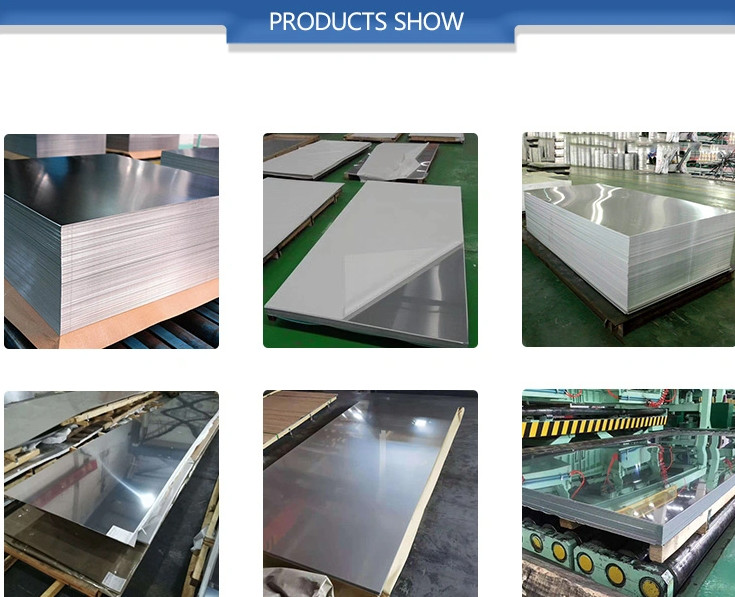

Inconel 625 UNS N06625 Nickel Alloy sheet Steel Plates for Cooling Heat Exchanger
Inconel 625 is an austenitic superheat-resistant alloy with nickel as its main component.Due to the strengthening effect of molybdenum and niobium contained in nickel-chromium alloy, at low temperature to 1093℃, it has super high strength, extraordinary fatigue resistance, and is widely used in aviation industry.Although the alloy is designed to adapt to the strength of high temperature environment, the high content of chromium and molybdenum on many corrosion media, from high oxidation environment to general corrosion environment, have high corrosion damage spots, fission corrosion resistance, showing excellent corrosion resistance characteristics.inconel 625 also has strong effects against chloride agents such as seawater, geothermal water, neutral salt and salt water.
Description:

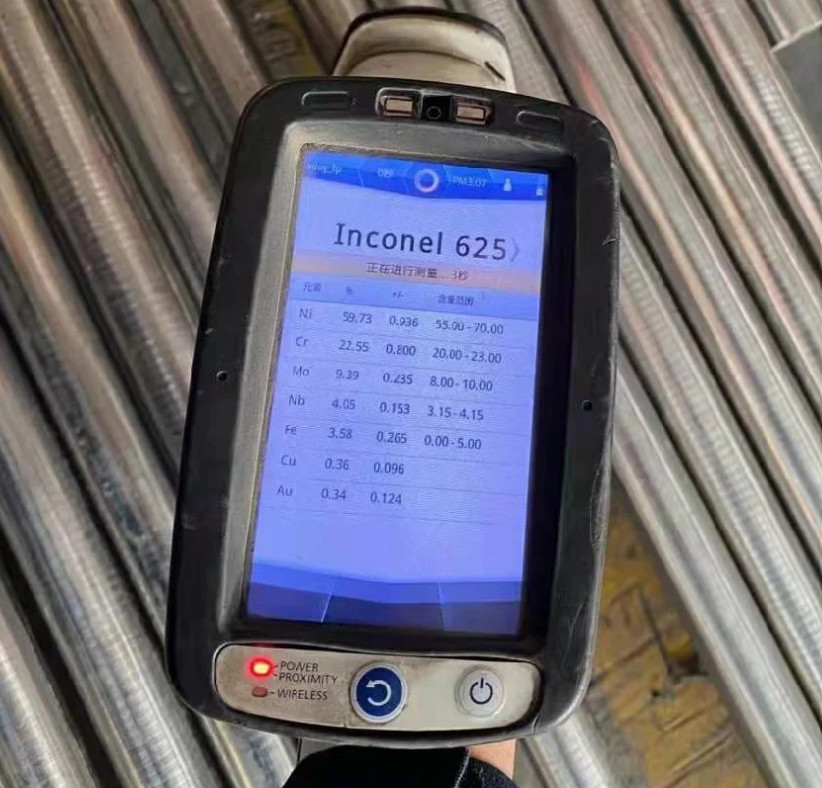

Inconel 625 Chemical composition
| Alloy | % | Ni | Cr | Mo | Nb+N | Fe | Al | Ti | C | Mn | Si | Cu | P | S |
| 625 | Min. | 58 | 20 | 8 | 3.15 | |||||||||
| Max. | 23 | 10 | 4.15 | 5 | 0.4 | 0.4 | 0.1 | 0.5 | 0.5 | 0.5 | 0.015 | 0.015 |
Inconel 625 Pysical properties
| Density | 8.4 g/cm³ |
| Melting point | 1290-1350°C |
Inconel 625 Alloy minimum mechanical properties in the room
temperature
| Alloy state | Tensile strength Rm N/mm² | Yield strength R P0. 2N/mm² | Elongation A 5 % | Brinell hardness HB |
| 625 | 760 | 345 | 30 | ≤220 |
| Item | Nickel plate, nickel sheet |
| Standard | ASTMA162,GB/T2054,DIN177502002,ASTM B127,ASTM B435,ASTMB582, ASTM B575, ASTM B168,ASTM B443, ASTMB463,ASTM B626,ASTM B536,etc |
| Material | ASTM:NO2200,NO2201,NO4400,NO4404,NO4405,NO5500,NO6002,NO6007, NO6022,NO6025,NO6030,NO6045,NO6059,NO6102,NO6200,NO6230,NO60333, MO60455,NO6600,NO7001,NO7750,NO8221,NO8020,NO8024,NO8800,etc |
| JIS:N0,N2,N1,NW2200,NW2201,NW4400,NW5500,NW6002,etc | |
| DIN:H-Ni99.96,H-Ni99.95,H-Ni99.92,H-Ni99.90,H-Ni99.5,H-Ni99,etc | |
| GB:N2,N4,N5,N7,N6,N8,NY1,NY2,NY3,NMn3,NMn5,etc | |
| Thickness | 0.3-400mm |
| Width | 10-2500mm |
| Length | 2m, 2.44m, 3m, 6m, or as required |
| Price term | Ex-Work,FOB,CNF,CFR,CIF,etc |
| Export to | Kenya,Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA, Brazil,Thailand,Korea, Iran,India,Egypt,Oman,Malaysia,Philippines British Kigali.etc |
| Application | 1)70% Ni was used for produce stainless steel and heat resistance
steel 2)15% of the Ni in the world was used as electroplating. 3)Used as catalyst in oil industry 4)Ni is one of the chemical source of energy,the need material for battery 5)Used to make pigment ,dye,ceramic, and ferrite. |
| Contact | If you have any question , please feel free to contact me . |
|
|
