Jiangsu Baowu new Material Co., LTD
1 Years
| Ask Lasest Price | |
| Brand Name : | TISCO, BAOSTEEL |
| Certification : | ISO, SGS, BV |
| Price : | to be negotiated |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 5000 Ton/Month |
| Delivery Time : | Within 7-15 workdays after receiving deposit or L/C |

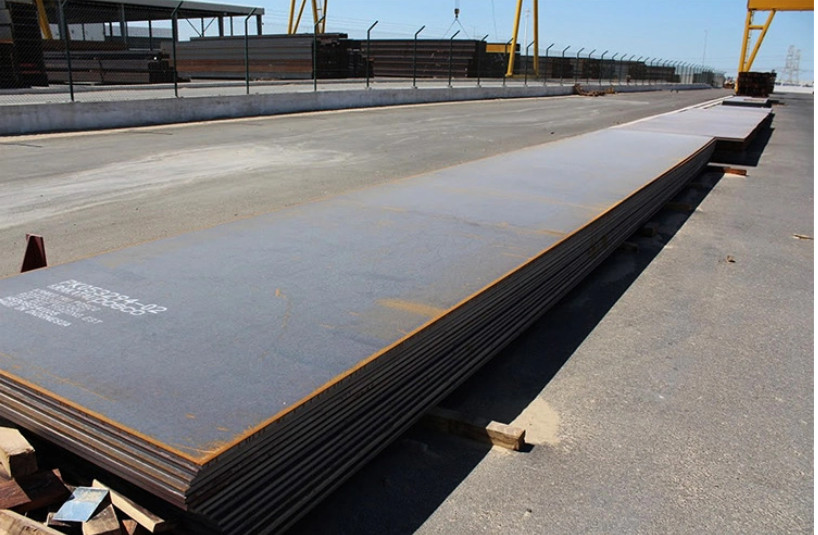

600 3mm Resistant Steel Plate for Construction
Wear-resistant steel plate, also called abrasion-resistant or AR
plate, is made from steel billets and comes in many grades. Carbon plays a key role in making the
wear plate steel abrasion- and wear-resistant because it increases
the steel's hardness and toughness.
Abrasion-resistant steel sheet
1) Wholesaler of :
a) @ From SAAB : 400 Series , 500 Series , 600 Series
b)EH@ From JFE : EH360 EH400 EH450 EH 500
c) RAEX® : RAEX® 400. RAEX® 450, RAEX® 500
d)DILLBUR@: 360 Series, 400 Seires, 450 Series ,500 Seires,
e)DILLBUR@: 360 Series, 400 Seires, 450 Series ,500 Seires,
1) Combustion power plant
2) Coal field
3) Cement plant
4) Loading machinery
5) Mine machinery
6) Construction machinery
7) Metallurgical machinery
| HARDNESS COMPARISON OF SOME AR GRADES* | |||||
| Brinell HBW 10 mm 29.4 kN | Vickers 98 N | Rockwell HRC | Approximate tensile strength MPa | Approximate corresponding grade | |
| 400 | 401 | 40 | 1245 | AR 400 | |
| 450 | 458 | 44.5 | 1412 | AR 450 | |
| 500 | 514 | 49 | 1580 | AR 500 | |
| 600 | 627 | 55 | 1940 | AR 600 | |
| AR PLATE AND SHEET | |||||
| AR grade | Hardness nominal HBW | Impact toughness CVL typical for 20 mm (¾") J at-40°C (ft-lb at -40°F) | Relative service life interval1 | CEV/CET typical for 20 mm (¾")2 | Thickness range mm (inches) |
| AR HiTuf | 350 | 95 (70) | 0.55/0.363 | 40-160 (1.57-6.3) | |
| AR 400 | 400 | 45 (33) | 1 | 0.44/0.28 | 2-130 (0.079 -5.12)4 |
| AR 450 | 450 | 50 (37) | 1.1-1.7 | 0.56/0.38 | 2.5-130 (0.098-5.12)4 |
| 0.39/ 0.31 | 0.7-2.1 (0.028-0.083)5 | ||||
| AR 500 | 500 | 37 (27) | 1.3-2.1 | 0.63/0.41 | 3-103 (0.118-4.06) |
| AR 500 Tuf | 475-505 | 45 (33) | 1.3-2.1 | 0.52/0.36 | 4-25 (0.079-0.985) |
| AR 550 | 550 | 30 (22) | 1.5-4.0 | 0.72/0.48 | 8-65 (0.315-2.56) |
| AR 600 | 600 | 20 (15) | 1.8-8.0 | 0.76/0.58 | 6-65, metric only |
| AR Extreme | 650-700 | 15 (< 11) | 2.0-18.0 | 0.65/0.54 | 8-19, metric only |
| AR HiTemp | 350-400 | 60 (44) | 0.59/0.40 | 5-51 (0.197-2) | |
Application
Package
|
|
