NM500 Wear Resistant Steel Plate High Strength Alloy Steel Plate
Wear-resistant steel plate, also called abrasion-resistant or AR
plate, is made from steel billets and comes in many grades. Carbon plays a key role in making the wear plate steel abrasion- and
wear-resistant because it increases the steel's hardness and
toughness. Wear resistant steel plate is high quality special steel
plate. It is irreplaceable part of mining machinery, cement and
metallurgical industry. The wear-resistant steel alloy wear layer
and the substrate are bonded. The high-hardness self-protecting
alloy welding wire is evenly welded on the substrate by special
equipment, and the composite layer is layered to two layers or even
multiple layers. Uniform transverse cracks occur on account of
different alloy shrinkage ratios in the compounding process, which
becomes a remarkable feature of wear-resistant steel plate.
NM500 Steel Plate ar500 plate ar400 steel ar400 steel plate of
NM500 steel sheet
1.common structural parts and parts for drawing in engineering
machines
2. transportation machine construction machines, lifting machine,
3. agricultural machines, light and civil industrial, household
appliance industries.
4. chemical equipments, drive casing pipe and light industrial
civil industries.
Wear resistant steel plate | |||
Length | 4m-12m or as required | ||
Width | 0.6m-3m or as required | ||
Thickness | 3-300mm | ||
Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. | ||
Technique | Hot rolled | ||
Surface Treatment | Clean, blasting and painting according to customer requirement | ||
Thickness tolerance | ±0.1mm | ||
Material | NM360,NM400,NM450,NM500,NR360,NR400 AR400,AR450,AR500,AR550 400,450,500,600 XAR400,XAR450,XAR500,XAR600 QUARD400,QUARD450,QUARD500 FORA400,FORA500 RAEX400,RAEX450,RAEX500 JFE-EH360, JFE-EH400,JFE-EH500 | ||
Application | It is widely used in mining machinery,environmental protection
machinery, cement machinery, engineering machinery etc due to it is high wear resistance. | ||
Shipment time | Within 15-20 workdays after receiving deposit or L/C | ||
Export packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required. | ||
Mechanical Properties | ||||||
Material | Thickness(mm) | Strength of extension | Elongation | Impact energy(vertical) | BH(Brinell Hardness) | |
℃ | Akv/J | |||||
NM300 | 6-80 | ≥1000 | ≥14 | -20 | ≥24 | 270-300 |
NM360 | 6-80 | ≥1100 | ≥12 | -20 | ≥24 | 330-390 |
NM400 | 6-80 | ≥1200 | ≥10 | -20 | ≥24 | 370-430 |
NM450 | 6-80 | ≥1250 | ≥7 | -20 | ≥24 | 420-480 |
NM500 | 6-70 | / | / | / | / | ≥470 |
NM550 | 6-70 | / | / | / | / | ≥530 |
450 | 5-50 | ≥1400 | 10 | -40 | ≥35 | 425~475 |
500 | 5-50 | / | / | -40 | ≥30 | 450~540 |
550 | 5-50 | / | / | -40 | ≥24 | 450~540 |
Application

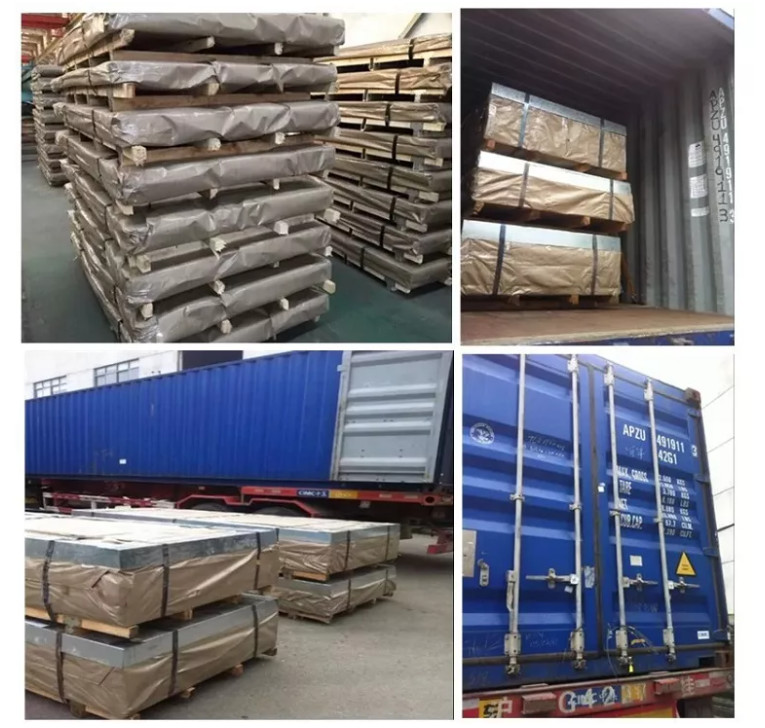

Package
|
|
